Overview Table

Use an overview table to show the users a list of items and item attributes for a service. The overview table also acts as the central location to manage items from the same or similar type with actions like create, edit, view, delete.

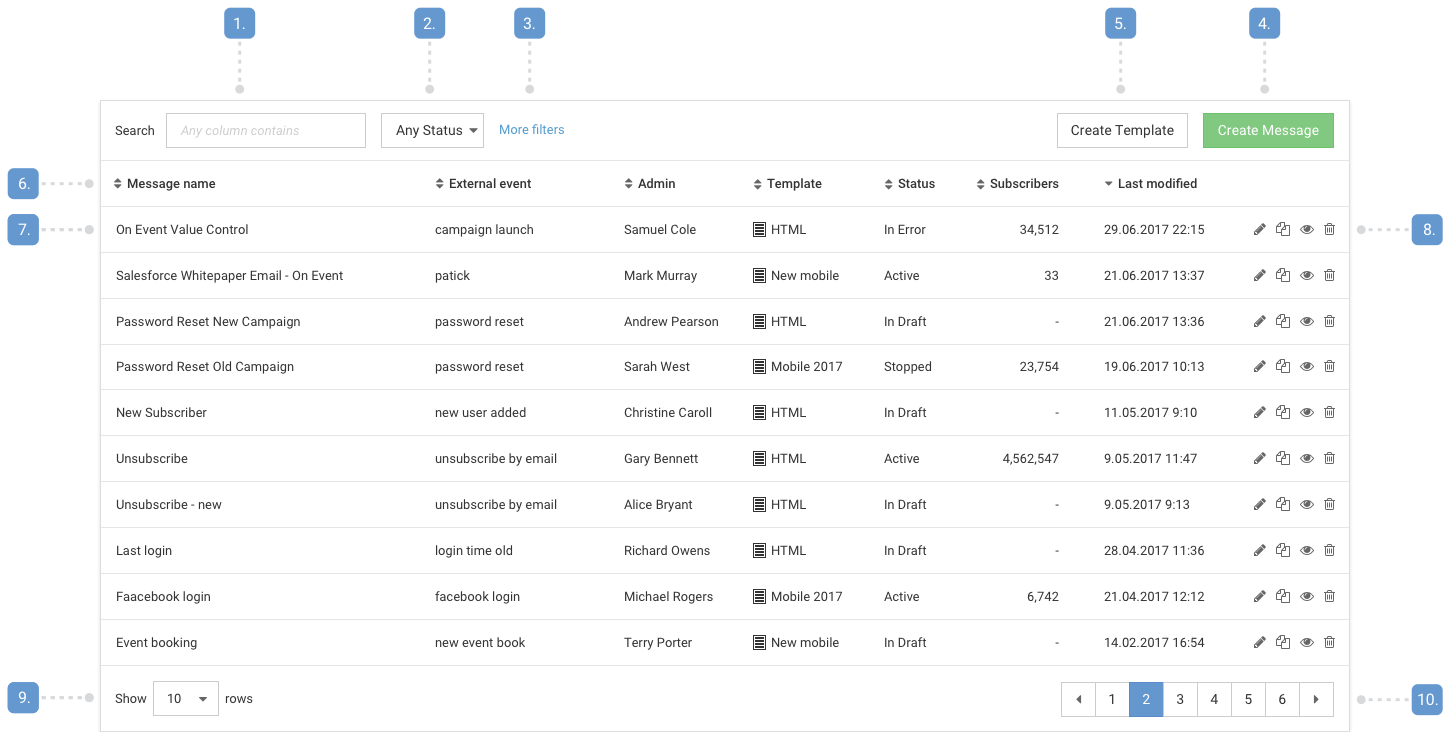

Structure

1. Search box
2. Primary filter
3. Additional filters
4. Primary creation button
5. Secondary creation button
6. Table header
7. Attributes
8. Actions
9. View option
10. Pagination

Best practices

• Display an empty state with feature introduction if no items are created yet
• Have one primary button for creating a new item labelled "Create item" if the user is able to create items
• Have one or less secondary button for additional action or non-primary way of item creation
• Have a way to select between available new item variations separately after the primary button has been pushed
• Help the user quickly find tiems with the search box by making any atribute searchable
• Have at most one primary filter and all additional filters should be hidden by default (More filters)
• Have 7 or less attributes displayed that help the user identify items and get basic insights in the items:
  • 2-3 attributes to identify the exact item (for example name, admin, etc.)
  • 1 attribute to show workflow status,
  • 1 attribute to show the last modification date (for default ordering),
  • 2-3 additional attributes or settings
• Be sorted by default to last modification
• Provide sorting to every attribute
• Have column width that avoids line breaks in the attributes
• Use right align for number attributes, where it's important the user can compare the values
  • Use the same number of decimals if percentages are displayed
• Use left align for any other information
• Provide tooltips for longer information, descriptions and calculations that help the user understand the item attributes
• Show "-" (dash mark) if a piece of information is not available
• Have 4 or less actions displayed
  • Display more actions in an overflow menu (... icon)
  • Never display an overflow menu with only one item
• Provide a way to view deleted items, if Delete action is avaliable to the users (soft delete, may be under More filters)
• Show 10 items by default
  • Remember the setting if the user changes it
• Have a pager disaplyed even if it displays only one page

• Showing more than 7 attributes, this makes the screen look cluttered, and keeps the user understanding what is important and what is not
• Showing more than 4 actions, this makes important actions stand out less
• Having too narrow field widths (values would be wrapped) or too wide field widths (users may think additional information is missing)
• Showing repeating symbols in everry row, use the attribute header to show these

Content guidelines
